Problem/Question
How to check printer setting via factory test print mode.
Applicable To
FX3-LX
Resolution/Answer

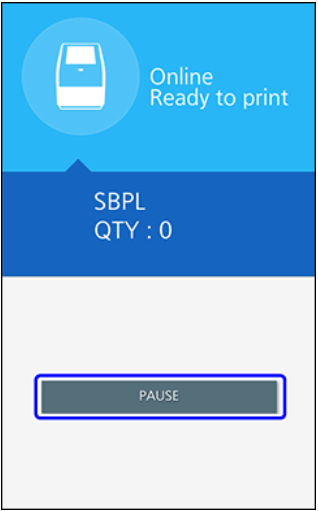

1. Tap [PAUSE] in Online mode. The product enters Offline mode.

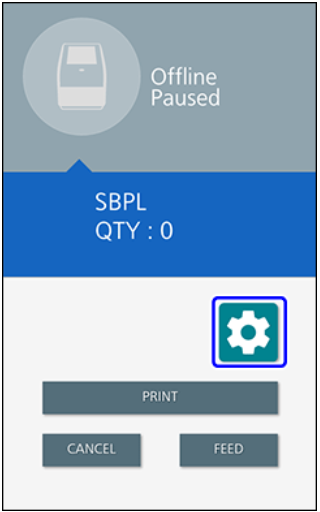

2. Tap .
3. Input the password if it is enabled. The product enters Settings mode.

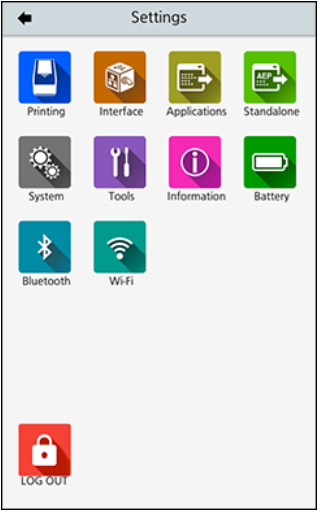

4. Tap icon. The product enters [Tools] menu.

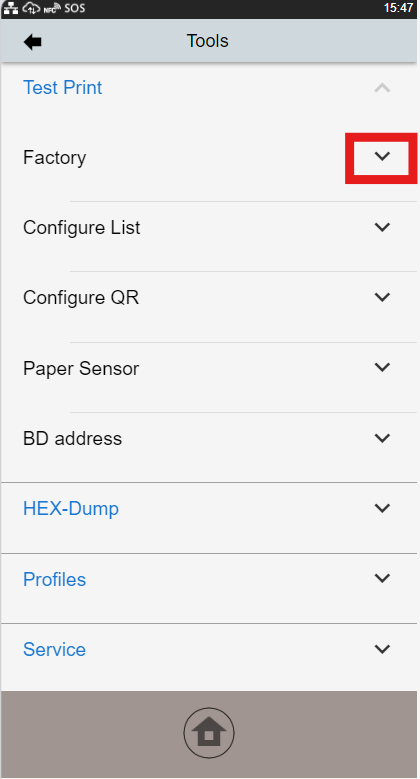

5. Select [Factory], tap icon.

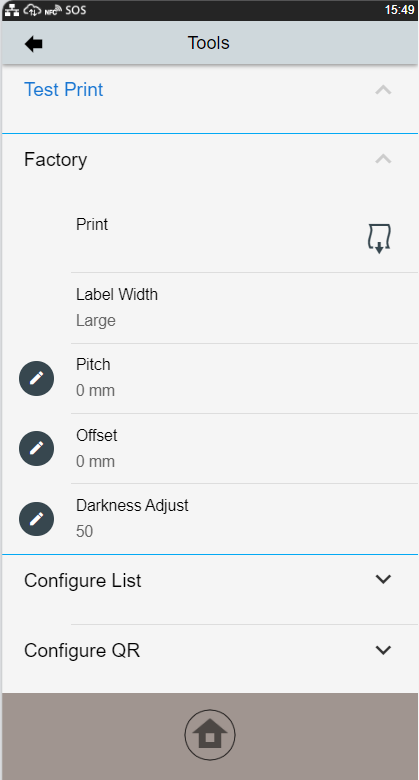

6. Tap to start the test print. Tap
to pause the print.
7. To stop the test print, first pause the print and then tap .
•You can also enter the Settings mode from the Home screen. Press the / (Standby/Home) button while in Online mode or Offline mode to show the Home screen.
•To exit the Settings mode, press the / (Standby/Home) button to show the Home screen, or tap to return to the previous screen.
[03-80100-EN]
