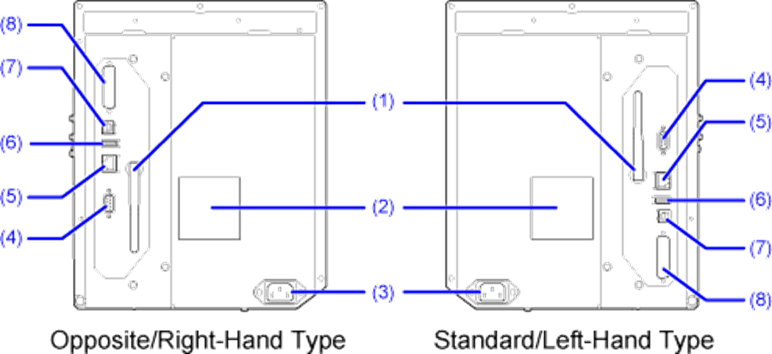

S8x-NX Parts Identification for the Product（Rear View）

Rear View

(1) Wireless LAN antenna (Optional)
Connector for installation of optional wireless LAN antenna.
(2) Fan filter
To prevent dust from entering the product.

(3) AC input terminal
Supplies power to the product through the inserted power cord.
Before connecting, make sure that the AC voltage of your region is in the range of AC 100 to 240
V, 50 to 60 Hz.
(4) RS-232C connector
To connect the product to the computer using the RS-232C serial interface.
You can also connect a barcode checker.
Usage of the RS-232C interface can be selected in the [Tools] > [Barcode Checker] > [Test] >
[Interface] menu.
(5) LAN connector
To connect the product to the network using the LAN interface.
(6) USB connector (Type A)
Enable the storage of product settings information with USB memory.
Also, other devices like a barcode checker, barcode scanner or keyboard can be connected.

• Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory.

(7) USB connector (Type B)
To connect the product to the computer using the USB interface.
(8) EXT connector (External signal interface)
Interface connector for external signals. Connect an optional device to this terminal.
