Parts Identification for the Operator Panel
(1) Display
(2) NFC antenna location
(3)
/
/
/
Arrow buttons
Navigate the selection in the screen menu.
(4) LED indicator
(5)
LINE button
Toggle between Online/Offline mode or playback/pause the video.
(6)
Enter button
Confirm the selected item or setting value.
(7)
Back button
Returns to the previous screen.
(8)
Soft buttons
The functions change depending on the screen. The functions of the buttons are indicated on the bottom of the screen.

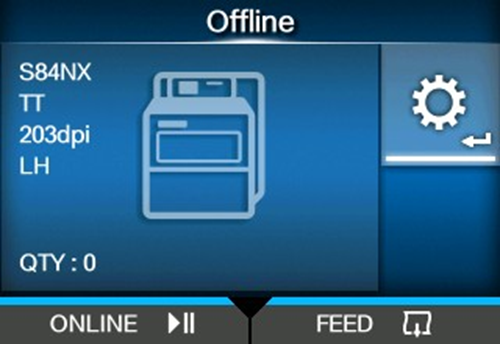

Example 1: In Offline mode
left soft button: ONLINE,
right soft button: FEED

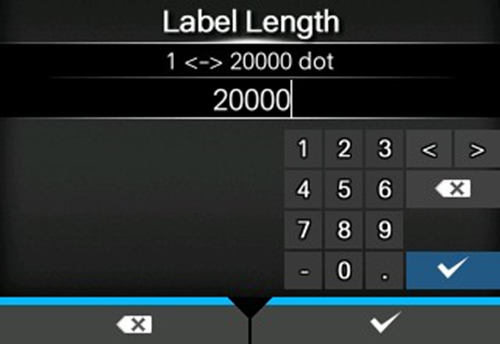

Example 2: The numerical value input screen of the Settings menu
left soft button: Delete one character,
right soft button: Save
[02-01215-EN]
