Problem/Question
How to check printer setting via factory test print mode.
Applicable To
CG408DT, CG412DT, CG408TT, CG412TT
Resolution/Answer
This mode produces test labels for diagnostic purposes.

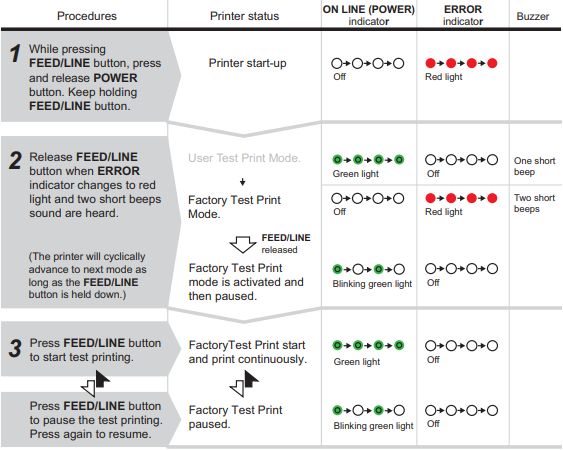

Preparation:
Make sure the media and ribbon (TT Model) are properly loaded in the printer.
Notes:
• If you missed the chance to release the FEED/LINE button in step 2 above, just keep holding the FEED/
LINE button and wait for the next cycle.
• If you released the FEED/LINE button at the wrong ON LINE (POWER) or ERROR indicators, just turn off the power and restart the procedure.
• The printer will continuously print the Factory test labels until the FEED/LINE button is pressed. The printing is paused and will resume printing if the FEED/LINE button is press again.
To terminate the Factory Test Print mode
First, ensure that you have pressed the FEED/LINE button to pause the test printing, then press POWER to turn off the printer.
Output Data of the Factory Test Print
The output data of the Factory Test Print shows the internal operating parameters of the printer.
These output data are printed in three parts, each with the printing area of 110mm [4.33”] (Width) x 115mm [4.53”] (Pitch), Standard.

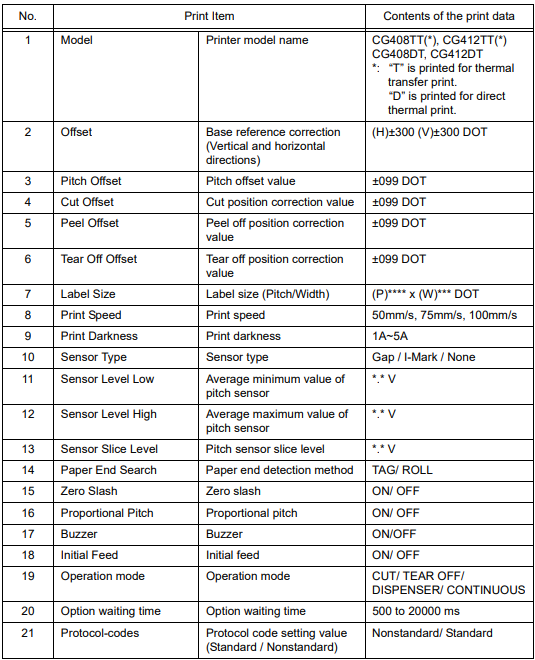

First print-out (Settings)

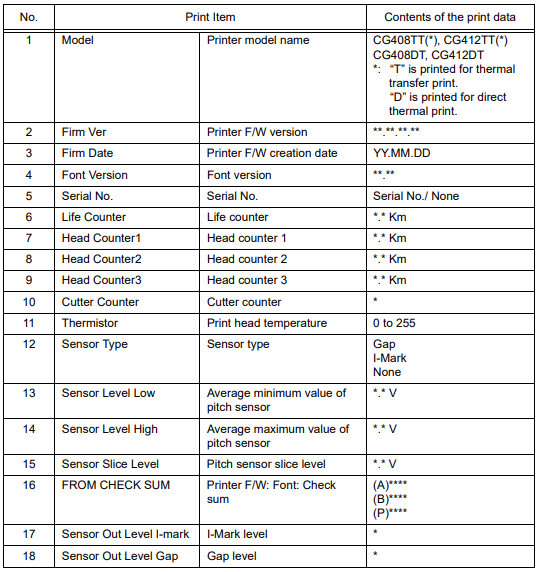

Second print-out (Settings)
03-80095-EN
