MAC OS - How To Find The Printer Resolution DPI

Toms
Updated

Problem/Question

How to find the Printer DPI resolution on (MAC OS)



Applicable To

Web Config



Resolution/Answer

Web Config

Access to printer setting by web config. The dpi information will be on top right of the screen.



Accessing to the Web Configuration Page.

The product can be operated through a web configuration page using any browser.
With an Ethernet LAN or WLAN connection, users can remotely get information from the product or perform the product settings.

•
You need the product's IP address to access the web configuration page. The product's IP address can be checked in [Settings] > [Information] > [IPv4 Address].
•
If the product's [Settings] > [Interface] > [Network] > [Advanced] > [Firewall] > [Enable] menu is set to [Enabled], [Settings] > [Interface] > [Network] > [Advanced] > [Firewall] > [Allow Services And Ports] > [WebConfig] must be set to [Enabled].
Open up the browser and enter the product's URL.
If the product's IP address is 192.168.143.123, enter the following URL: https://192.168.143.123
When a security certificate is prompted, you must acknowledge and click Continue.

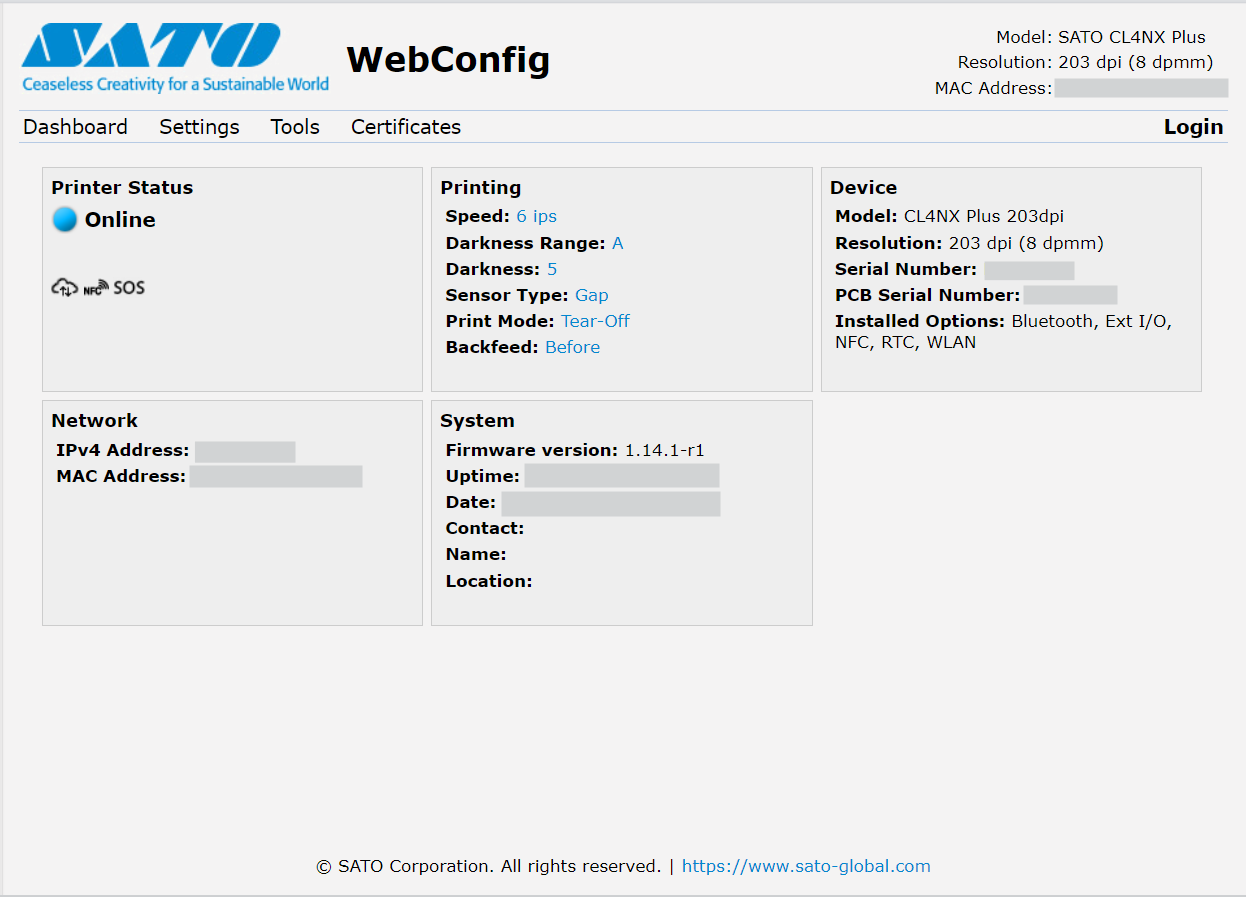

The web configuration page for the product appears. On the upper right (1) of each page, the model name, current resolution and MAC address are shown.
[03-80066-EN]
