Problem/Question
How to find the Printer DPI resolution on printer
Applicable To
WS2/WS4 printers
Resolution/Answer
WS2/WS4
1. Refer diagram below to locate dpi information from serial number tags at bottom of printer.
Refer chart 1 below to obtain dpi information.
| Model: | dpi | DOTS |
| WS208 | 203 dpi (8 dots/mm) | 812 DOTS |
| WS212 | 300 dpi (12 dots/mm) | 1120 DOTS |
| WS408DT/WS408TT | 203 dpi (8 dots/mm) | 812 DOTS |
| WS412TT/WS412DT | 300 dpi (12 dots/mm) | 1120 DOTS |
2. Run a self-test to print a configuration label, which helps you
understand current settings of the printer.
Perform the following steps to run the self-test:
1. Turn off the printer.
2. Press and hold the FEED button and turn on the printer.
3. Both status lights glow solid orange for a few seconds. Next, they turn to green shortly and then turn to other colors. When LED 1 turns to orange and LED 2 turns to green, release the FEED button.
4. Press the FEED button to print a configuration label.

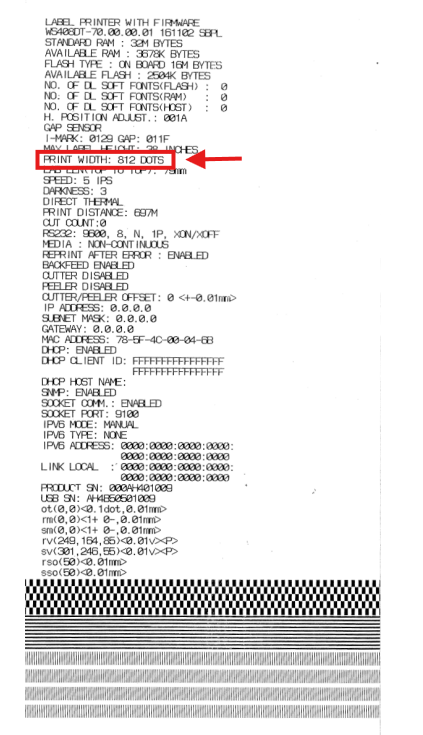

Sample test print.
* Applicable to WS2 and WS4 printers.
[03-80064-EN]
