Problem/Question
How to check printer setting via factory test print mode.
Applicable To
WS208DT/TT, WS212DT/TT
Resolution/Answer
1. Turn off the printer.
2. Press and hold the FEED button and turn on the printer.
3. Both status lights glow solid Orange for a few seconds. Next, they turn to green shortly, and then turn to other colors. When LED 2 turns to green and LED 1 turns to Orange, release the FEED button.
4. Press the FEED button to print a configuration label.

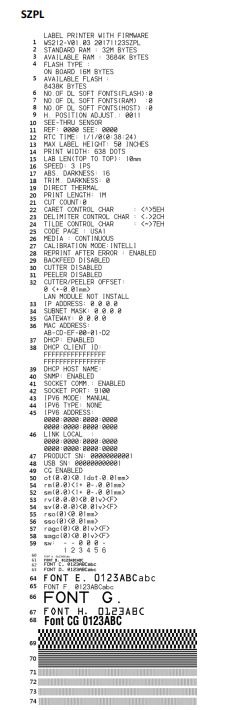

Your configuration label should look like this:
[03-80097-EN]
