Resolution/Answer
When default setting mode is selected and executed in Operation Setting mode, the printer will reset to the default setting (factory preset) as listed below.
| No. | Items to be reset | Default value |
| 1 | Offset (V, H) | Vertical = 0 dot, Horizontal = 0 dot |
| 2 | Pitch Offset | 0 dot |
| 3 | Cut Offset | 0 dot |
| 4 | Dispensing Offset | 0 dot |
| 5 | Tear-Off Offset | 0 dot |
| 6 | Label Size | Pitch 896 dot x Width 832 dot [203 dpi] Pitch 1344 dot x Width 1248 dot [305 dpi] |
| 7 | Print Speed | 75 mm/sec (3 Inches/sec) |
| 8 | Print Darkness | 3A |
| 9 | Sensor Type | Gap |
| 10 | Paper End Search | Roll |
| 11 | Zero Slash | Enabled |
| 12 | Proportional Pitch | Enabled |
| 13 | Initial Feed | Disabled |
| 14 | Auto Feed | Disabled |
| 15 | Operation mode: | |
| Continuous | - (No setting) | |
| Tear Off | - (No setting) | |
| Cutter | Mode 1 (Head position) | |
| Dispenser | Mode 1 (Head position) | |
| 16 | Interface: | |
| RS-232C | Baud rate=19200 bps, Protocol = Protocol for driver |
|
| LAN | Protocol for driver (ENQ response mode) *1 | |
| IEEE 1284 | Protocol = Protocol for driver | |
| USB |
Protocol = Protocol for driver |
*1. To be connected by Port1024 and Port1025 (2 port connections) or Port 9100 (1 port connection)

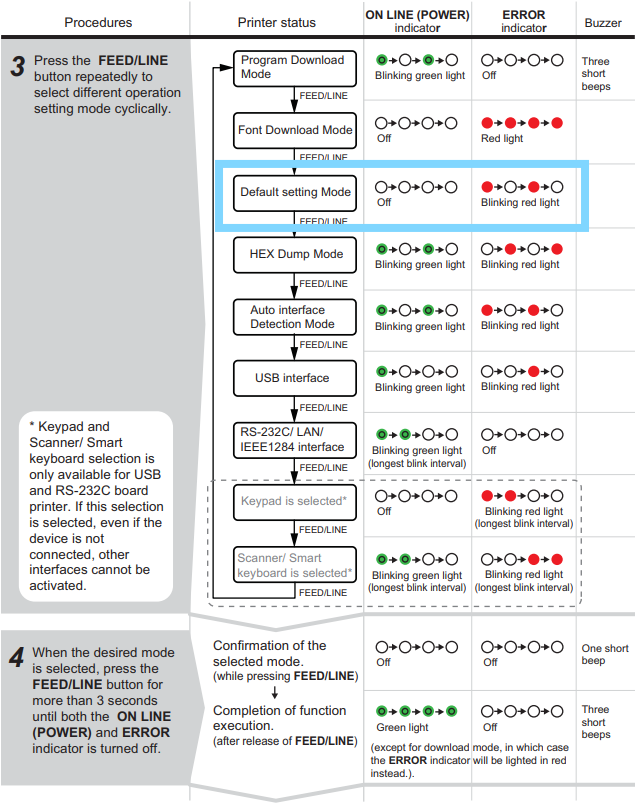

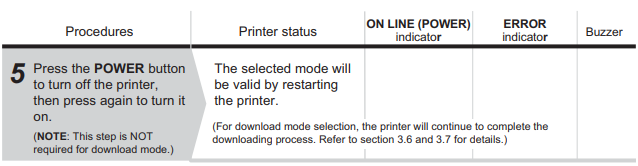

Steps to factory preset:
When the default setting mode is selected and executed, the printer will be set to default setting.
03-80133-EN
