CL4/6NX & CL4/6NX Plus- Factory Test Print Mode

Toms
Updated

Problem/Question

How to check printer setting via factory test print mode.



Applicable To

CL4NX, CL6NX, CL4NX Plus, CL6NX Plus



Resolution/Answer

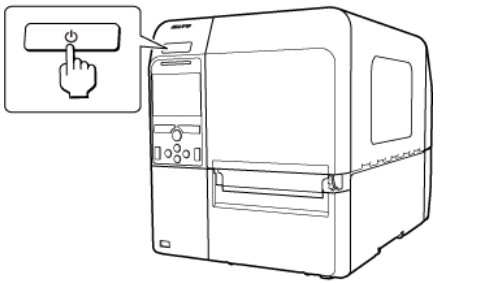

1. Power on the printer.

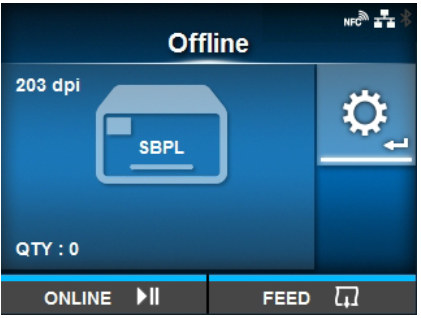

2. Press the Play_pause button.png button to put the printer into 'OFFLINE' mode.

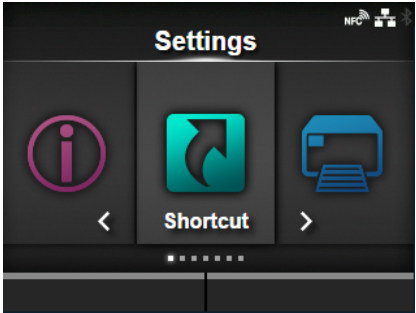

3. Then press the Enter button.png button to enter into 'Settings' mode.

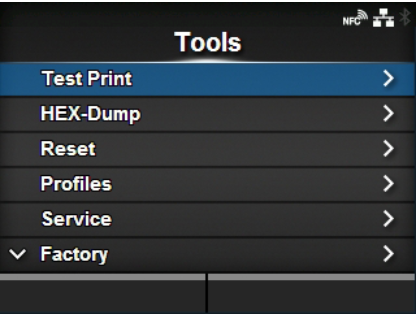

4. Use the arrow keys to look for 'Tools' then press the Enter button.png button.

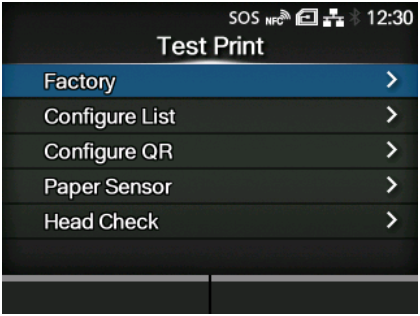

5. Look for 'Test print' then press the Enter button.png button.

6. Then, 'Factory' then press the Enter button.png button.

7. Press thebottom right button.jpg button to start the test print. Press the bottom right button.jpg button again to pause the print.
8. To stop the test print, first pause the print and then press the  button.

9. Then press the Play_pause button.png button to put printer back into 'ONLINE' mode.





[03-80096-EN]
