Problem/Question
Label does not stop at the correct position.
Labels are misaligned.
Skipping Labels.
Applicable To
WT4-AXB
Resolution/Answer
Steps for Liner Calibration
1. Remove the first label from the liner.
2. Put the liner under the print head (same as the process of 2.3 Load media) and close.
the print head.

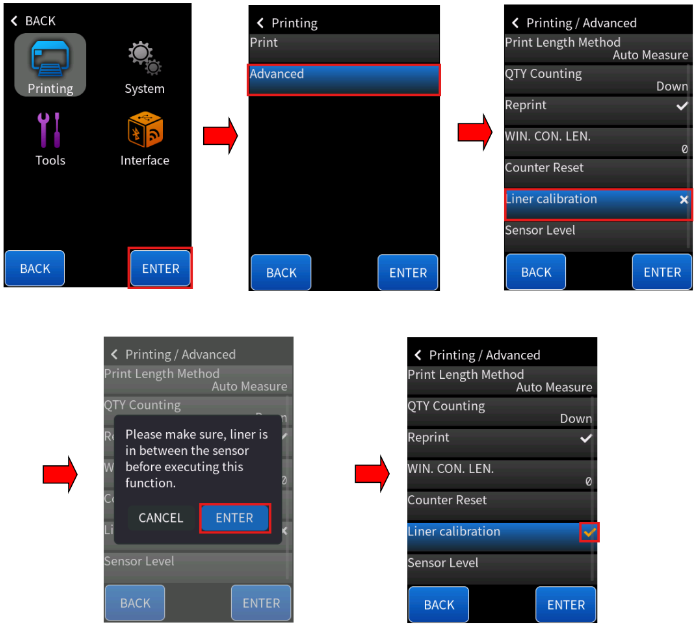

3. Execute the Liner Calibration function from the LCD menu.
[03-80234-EN]
