Problem/Question
Identify printer serial number.
Applicable To
| CL4NX, CL4NX Plus | CL6NX, CL6NX Plus | CT4-LX | CG2 |
| CG4 | FX3-LX | LR4NX | M84Pro |
| PW2NX | PW4NX | S84-ex | S84NX |
| S86-ex | S86NX | WS2, WS4 | WT4-AXB |
Resolution/Answer

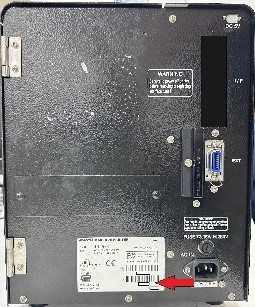

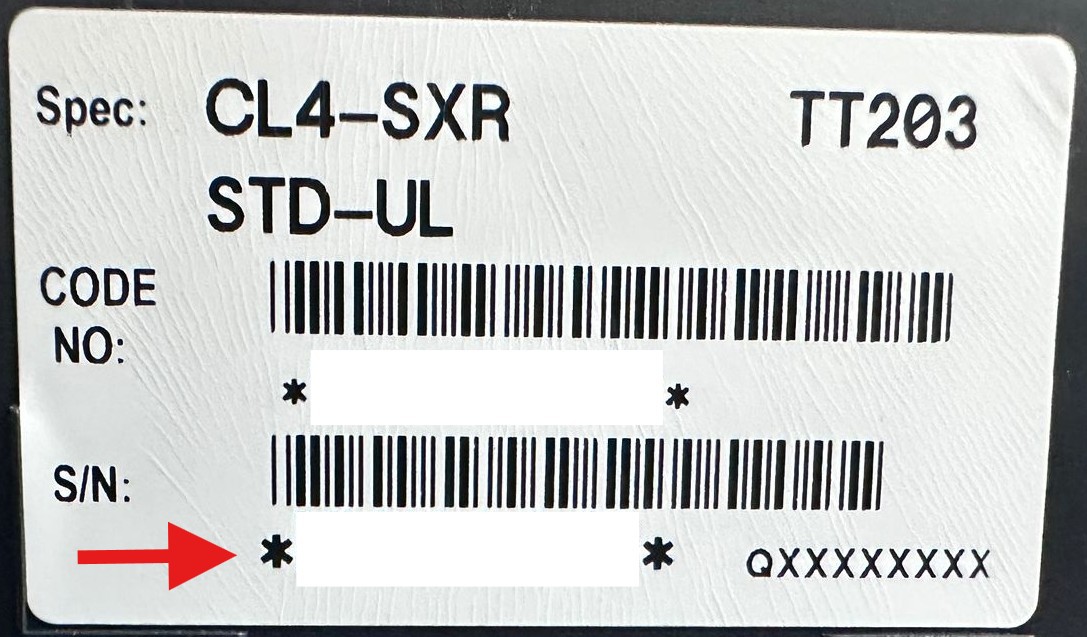

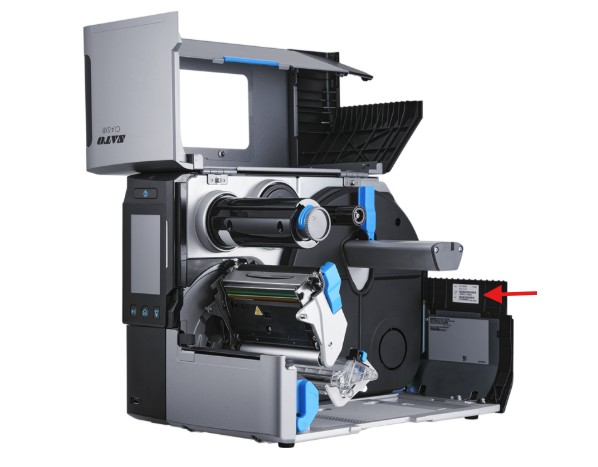

Refer diagram below to locate serial number tags either at back, bottom, or inside the printer.
Printer serial number tags
| Printer Model | Tag |
|

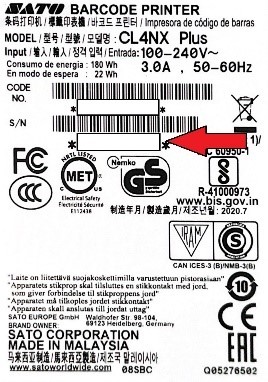

CL4NX, CL4NX Plus

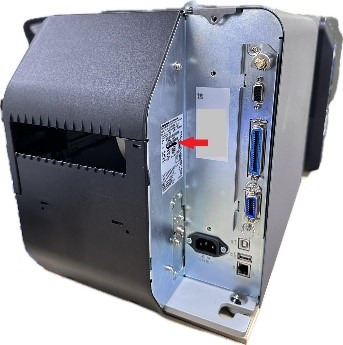

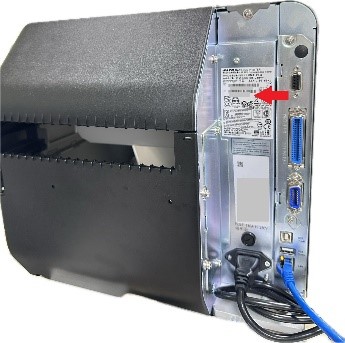

CL6NX, CL6NX Plus - Back
|
|
|

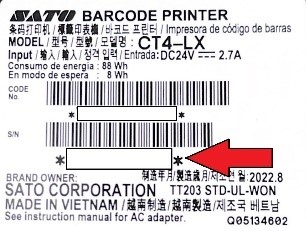

CT4-LX -Back
|
|
|

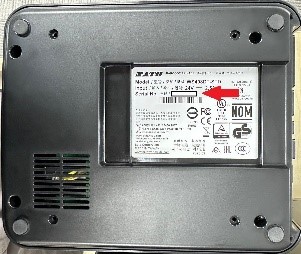

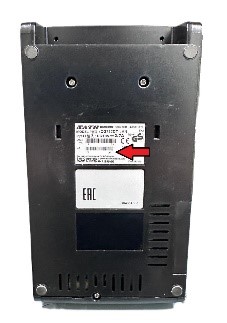

WS408DT – Bottom
|
|
|

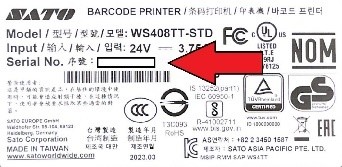

WS408TT – Bottom
|
|
|

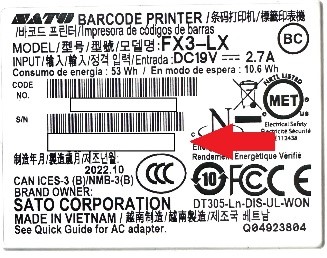

FX3-LX - -Back |
|
|

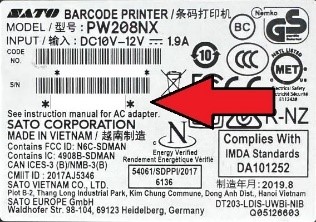

PW2NX - Bottom |
|
|
PW4NX - Bottom
|
|
|
M84Pro -Back
|
|
|

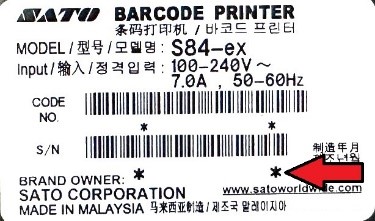

S84-ex
|
|
|

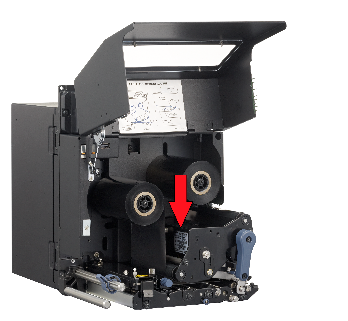

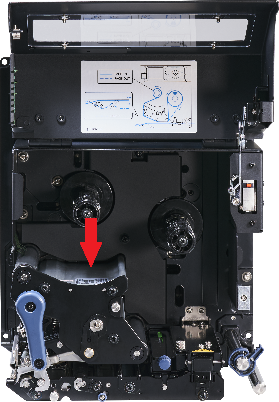

S84NX - Inside
|
|
|
S86-ex - Inside
|
|
|
S86NX – Inside
|
|
|

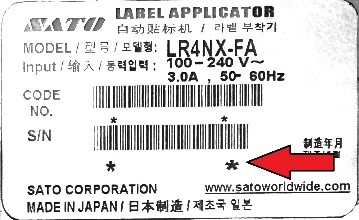

LR4NX – Inside
|
|
|

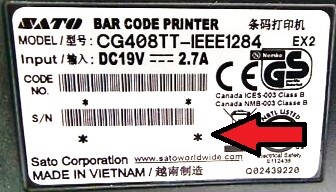

CG2 -Back
|
|
|
CG4 - Back |
|
|

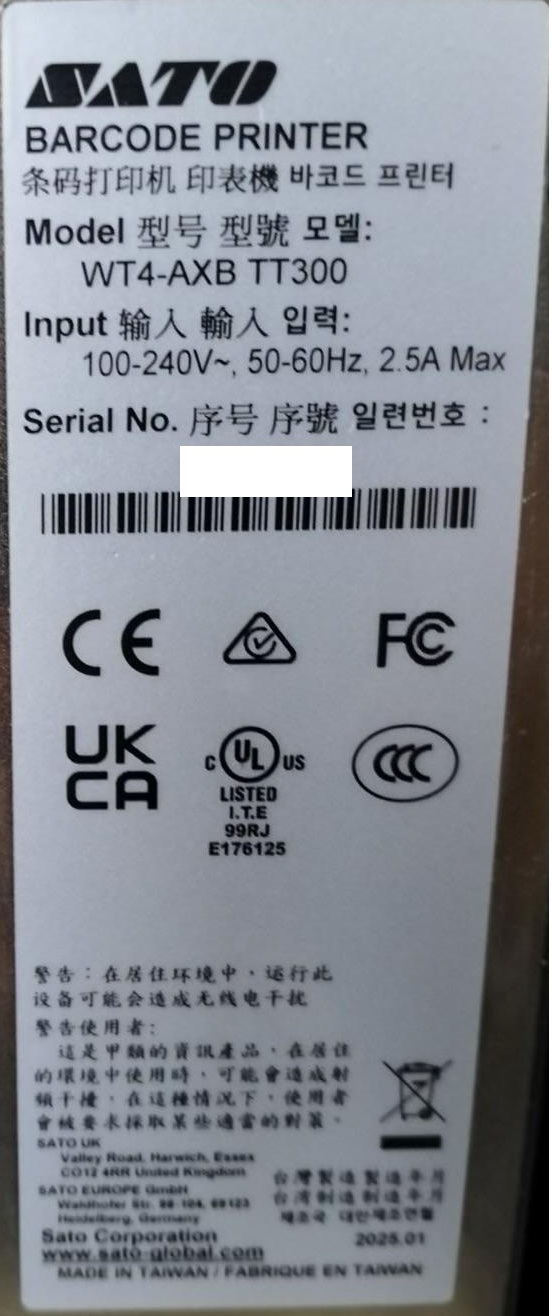

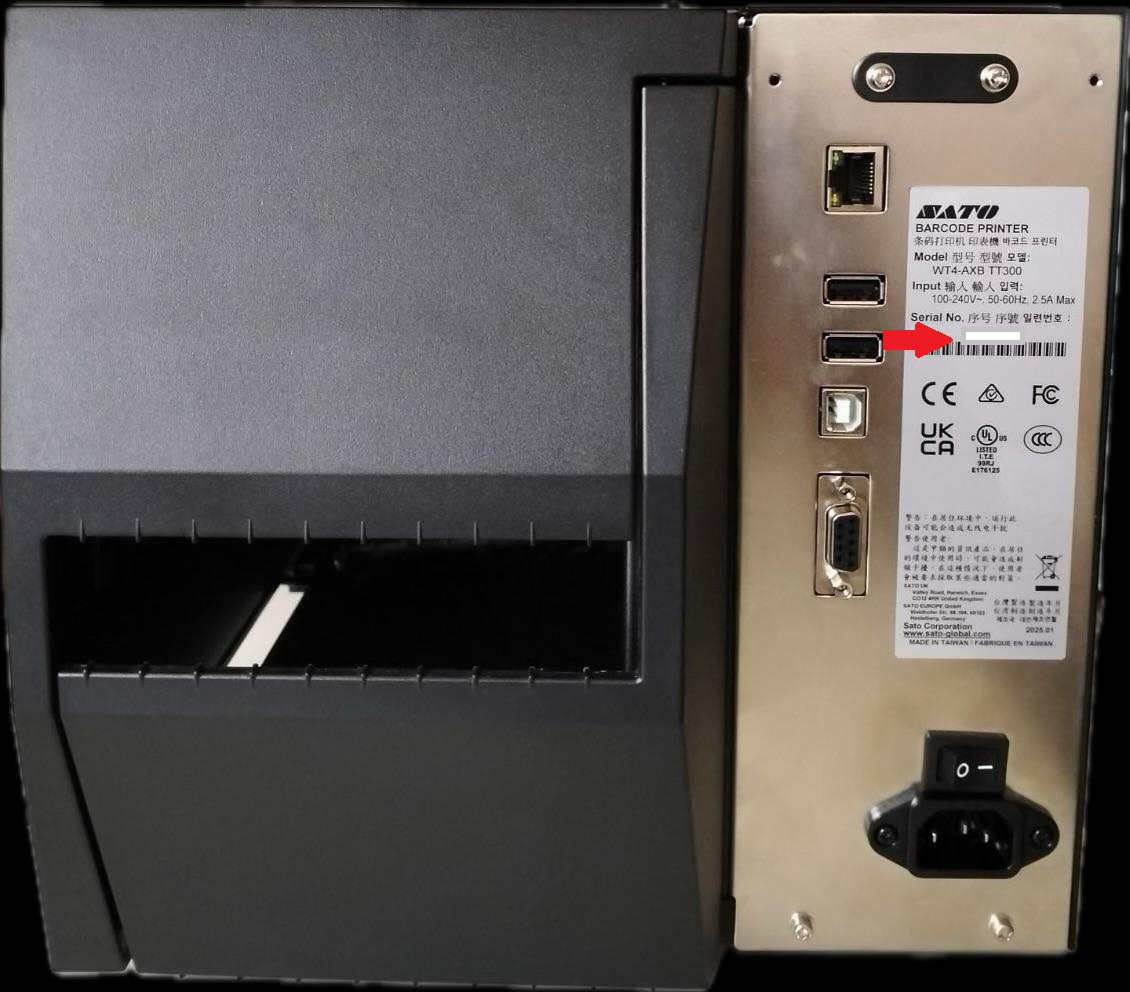

WT4-AXB - Back
|
Remarks:
The Safety Standards logo shown on the sample data plate of each model is vary depending on the country/region’s regulations. For more information, please contact your local SATO representative.
[03-80007-EN]
