W-LAN connection procedure
・W-LAN specification:
-IEEE 802.11b/g
-TCP/IP (FTP, LPR, SOCKET)
-DHCP / Manual IP address configuration supported
-Printer status can be checked on the LCD display

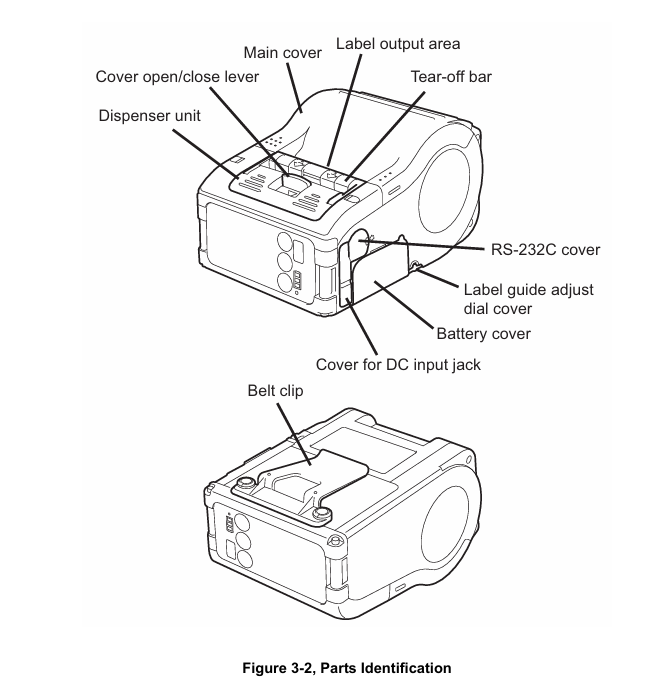

1) With the printer facing forward, open the DC input terminal cover on the right-hand side, and set the DIP switches as follows;
DSW-1 = OFF
DSW-2 = ON
DSW-3 = OFF
DSW-4 = OFF
2) Print using TCP/IP communication (FTP, LPR, SOCKET)
NOTE: DHCP / Manual IP address configuration (status viewable on LCD)
